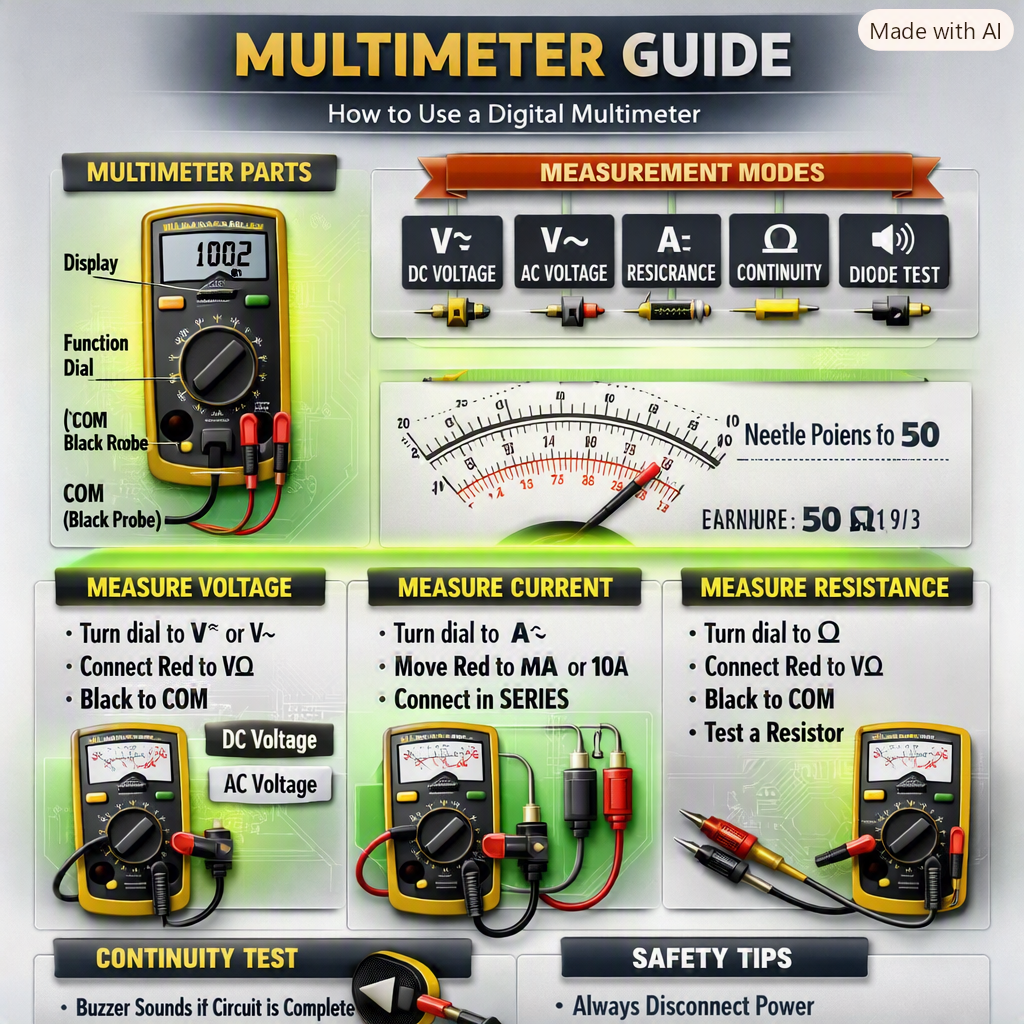

⚡ Digital Multimeter (DMM) Complete Guide
Voltage, Continuity, Resistance aur Battery diagnosis ke step-by-step testing standards.
1. Dial Mode & Port Overview
Probe Sockets (Jacks)
- COM (Black Probe): Hamesha Ground / Negative (-).
- V-Ω-mA (Red Probe): Voltage, Resistance, Continuity aur Low Current ke liye.
- 10A / 20A (Red Probe): Sirf High DC Current measurement ke liye.
Common Dial Symbols
- V⎓ (DC Voltage): Batteries, EV Packs, DC-DC Converters, Logic Circuits.
- V~ (AC Voltage): Wall Sockets, Inverters, AC Charger Input.
- 🔊 / Diode (Continuity): Wires, Fuses, Switch & PCB Trace checks.
- Ω (Resistance): Motor windings, Sensors, Heating elements.
2. Core Testing Procedures
A. Continuity & Fuse Testing (Beep Mode)
Power OFF Mode
Circuit me break ya short circuit check karne ke liye.
- Dial ko Buzzer/Diode symbol par set karein.
- Red probe ko fuse/wire ke ek end aur Black probe ko dusre end par lagayein.
- Beep aayi (Near 0 Ω): Wire/Fuse theek hai (Closed Circuit).
- No Beep (Display 'OL' / '1'): Wire toota hai ya fuse blown hai (Open Circuit).
B. DC Voltage (Battery & Pack Measurement)
Live Circuit
Battery pack voltage, throttle signal (0.8V–4.2V), ya 12V auxiliary line check karne ke liye.
- Dial ko V⎓ (DC) par set karein (Expected voltage se higher range chunein, jaise 200V range for 48V/60V/72V batteries).
- Red probe: Positive (+) terminal par.
- Black probe: Negative (-) terminal par.
- Display par total voltage verify karein (Agar negative sign '-' aaye, probes ulti hain).
C. Resistance (Ω) & Coil Health
Power OFF Mode
BLDC motor phase coils, relay coils aur temp sensors ke liye.
- Circuit ki power supply disconnect karein.
- Dial ko Ω range (200Ω ya 20kΩ) par set karein.
- Dono probes component terminals par touch karein. Values teeno phase coils ke beech barabar honi chahiye.
3. Quick Diagnostic Checklist
| Component | Multimeter Mode | Normal Reading | Fault Reading |
|---|---|---|---|
| MCB / Glass Fuse | Continuity (Buzzer) | Continuous Beep (Near 2 Ω) | No Sound / 'OL' |
| 12V DC-DC Output | DC Voltage (20V) | 12.0V - 14.5V DC | 10V ya 0V |
| Hall Sensor Signal | DC Voltage (20V) | 0V aur 5V toggle (Wheel ghumane par) | Constant 0V ya 5V (No toggle) |
| BLDC Phase Wires | Resistance (200Ω) | Identical low resistance (U-V, V-W, W-U) | Unequal values ya 'OL' |
⚠️ Critical Safety Rules
- Current (A) vs Voltage (V): High voltage check karte waqt probe ko galti se 10A/Amps port me mat lagayein; isse direct short-circuit aur meter fuse blow ho sakta hai.
- Resistance test on live circuit: Kabhi bhi live power par resistance ya continuity test na karein.
- High Voltage Range: 48V–72V+ battery packs test karte waqt dial ko hamesha 200V ya 600V DC range par rakhein.
